What is a Creep tester?
A creep tester is a testing machine used to evaluate the creep characteristics of materials. Creep refers to the phenomenon in which a material deforms over time when a constant stress (load) is applied to the material for a long period of time. This phenomenon is particularly evident in high-temperature environments, so creep tests are important for evaluating materials used at high temperatures.
Purpose of creep test
Material selection: Creep characteristics are an important indicator when selecting materials to be used in high-temperature environments.
Life prediction: By examining creep characteristics, the risk of deformation or breakage of materials during long-term use can be predicted.
Design support: By considering creep characteristics in the design of structures and parts, more reliable designs can be achieved.
Creep test method
In creep tests, a test piece (sample) is left for a long time while maintaining a constant temperature under a constant stress, and the deformation that occurs during that time is measured. The test results are expressed as a creep curve that shows the relationship between the amount of deformation and time.
Configuration of creep tester
Loading device: A device for applying a constant stress to a test piece. The load is usually applied using weights or hydraulic systems.
High-temperature furnace: A furnace for keeping the test specimen at a specified temperature. The test temperature is adjusted according to the material and application.
Displacement measuring device: A device for accurately measuring the deformation of the test specimen. LVDTs (linear variable differential transformers) and tensile meters are used.
Control and data acquisition system: A system for controlling the entire test and collecting and recording the measurement data. It is common to monitor and analyze the data in real time using a computer.
Creep testing is one of the essential tests for evaluating materials used in high-temperature environments, especially in power plants, aerospace, and chemical plants. This ensures the long-term reliability of materials and supports safe and efficient operation.
Hightlights of Creep tester
Manufacture list of Creep tester
※Includes information on some trading companies
-
-
-

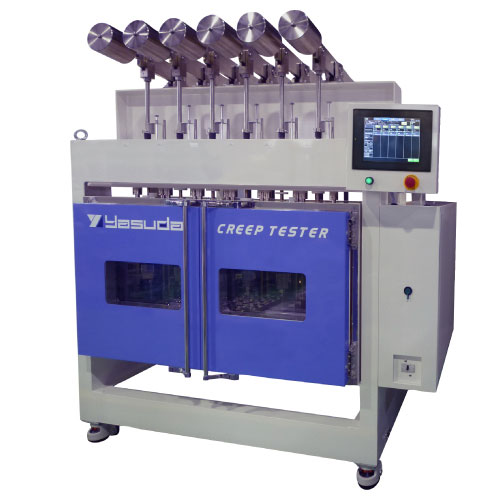

70 years of dedication to testing machines .As technology advances, customer needs are becoming more diverse, and we are constantly developing testing machines to meet those needs. Yasuda Seiki's testing machines are designed and manufactured to meet over 300 types of JIS, ISO, and ASTM standards, so we can perform material tests based on the standards. We have also delivered to over 27 countries overseas, not just throughout Japan.
