What is a Combustion testing machine?
What is a Flammability Tester?
A flammability tester is a testing device used to evaluate the combustion properties of materials and products. It is mainly used for plastics, textiles, rubber, electrical and electronic components, building materials, and other substances to measure their flame resistance and burning behavior.
There are various test methods, including:
Vertical & Horizontal Burning Test: Measures the spread rate of flames and self-extinguishing properties according to standards such as UL 94.
Limiting Oxygen Index (LOI) Test: Determines the minimum oxygen concentration required to sustain combustion.
Cone Calorimeter Test: Controls heat flux to measure heat release rate and smoke production, based on ISO 5660.
Wire & Cable Flammability Test: Evaluates the burning characteristics of wires and cables according to IEC 60332.
These tests help ensure product safety and regulatory compliance, contributing to fire risk reduction.
Application of Combustion testing machine
✅UL 94 Flammability Tester
Evaluates the flammability of plastic materials.
Performs vertical burning tests (V-0, V-1, V-2) and horizontal burning tests (HB).
Used for flame resistance evaluation in home appliances, automotive parts, and electronic devices.

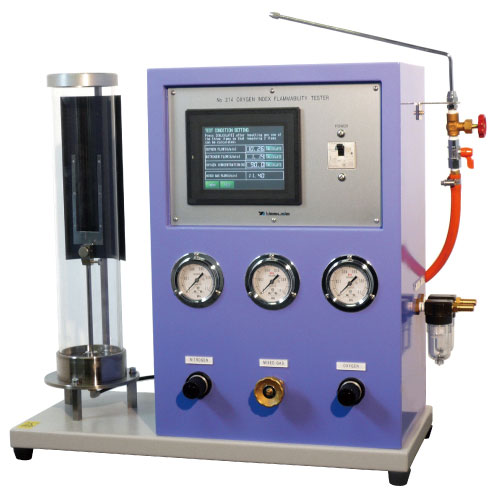

✅Limiting Oxygen Index (LOI) Tester
Measures the minimum oxygen concentration required to sustain combustion.
Used for evaluating the flammability of building materials, textiles, and wire insulation.
Complies with ASTM D2863 and ISO 4589 standards.
✅Cone Calorimeter
Measures heat release rate (HRR), smoke production, and CO/CO₂ emissions.
Applied in the safety assessment of aircraft and railway interiors, automotive parts, and furniture.
Complies with ISO 5660 and ASTM E1354 standards.
✅Wire and Cable Flammability Tester
Evaluates the burning behavior of wires and cables in fire conditions.
Complies with IEC 60332 (single/multi-wire burning tests) and ISO 6722 (automotive cables).
Used for safety assessment in buildings, tunnels, and railway wiring.
Hightlights of Combustion testing machine
Manufacture list of Combustion testing machine
※Includes information on some trading companies
-
-
-
70 years of dedication to testing machines .As technology advances, customer needs are becoming more diverse, and we are constantly developing testing machines to meet those needs. Yasuda Seiki's testing machines are designed and manufactured to meet over 300 types of JIS, ISO, and ASTM standards, so we can perform material tests based on the standards. We have also delivered to over 27 countries overseas, not just throughout Japan.
